10 feet super wide format 3.2m outdoor tarpaulin inkjet solvent printer dx5 head
Advantage of 3.2m inkjet printer:
High outpout resolution
Using Epson Dx5/DX7/dx11/xp600/I3200 print heads, consists of eight columns, each hole
180, high output accuracy of up to 1440dpi.
High printing speed.
Epson dual nozzle printing system using two staggered nozzle, high-speed printing of up to 36
square meters per hour 4Pass, boost productivity.
High quality output, high definition.
New variable droplet technology, up to three transformation point. Financial mistake can make
head feathering state, in the case of high speed or low resolution can also be embodied perfect
quality, printing can be realized without point
Stable
Industrial circuit design, to ensure stable and reliable circuit. Large-capacity automatic ink supply
system, and so good design to ensure the overall stability of the machine, as a user's right-hand
man Automatic ink absorbing system, simple operation, automated sprinkler maintenance functions.
Three intelligent eclosion print function
paraments of 3.2m tarpaulin printer
| Model No. | TC-3200 |
| Printhead | Type | Dual Epson DX5/DX600 | Dual Epson i3200 |
| | Nozzles | 1440 Nozzles per Head |
| | Height | 2-8mm above Media Adjustable |
| Printing Width | Max 3.2 meter (126 inch) |
| Resolution(dpi) | 1440 dpi |
| Color | CMYK/CMYKLCLM | CMYK / CMYK |
| Ink | Type | Eco Solvent Ink |
| | Droplet | 1.5 – 21pl Variable |
| | Cartridge | Bulk ink supply: 4x350ml ink cartridges+ 1 Liter per color big ink bottle |
| Speed | Draft | 50 sqm/h | 70 sqm/h |
| | Standar47 | sqm/h | 50 sqm/h |
| | Quality | 25 sqm/h | 40 sqm/h |
| | Photo | 20sqm/h | 30 sqm/h |
| Media Types | Frontlit, Backlit, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh… |
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) |
| Cleaning System | Automatic Cleaning, Anti-Clogging Flash Function & Capping System |
| Heating System | Pre/Middle/ Rear Heating System Equipped |
| Cooling System | Cooling Fan Equipped |
| Environment | Temperature: 20-28°C, Humidity: 40-60% |
| Rip Software | Maintop (Standard) / PhotoPrint (Optional) / ONYX (Optional) |
| Control Software | SinoColor Print Console |
| Interface | USB 3.0 |
| Operation System | Windows 7 / XP/10 |
| Power | AC 110/220V, 50/60HZ,1500W |
| Size & Weight | Machine | L4360 W780 H1500 (mm) / 480KG |
| | Packing | L4610 W1000 H740 (mm) / 640KG |

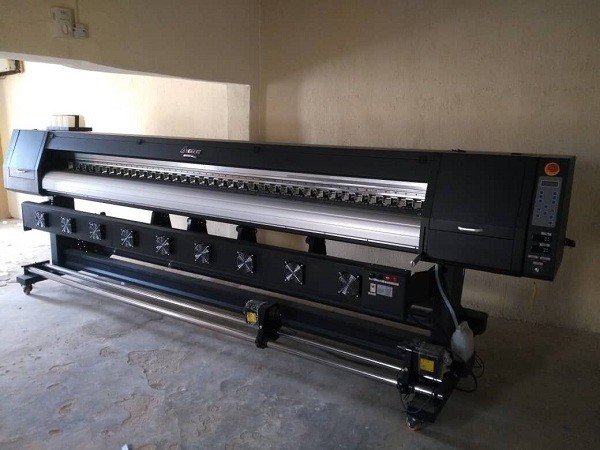

picture of inkjet printer dx5 head :
